Canvas

The Canvas is the central design surface where you build and interact with your running app's user interface. It reflects the live visual output of your XAML page and allows you to select, move, edit, and organize controls directly. Actions you take on the Canvas are reflected in real time, making it the most visual and interactive part of Hot Design.

Whether you're adjusting layout, editing a UserControl, or testing structure with live feedback, the Canvas helps you work faster and more intuitively.

The Canvas shows your running app in Application mode. Switching to Previews mode on the left navigation bar shows your previews on the same surface instead.

Zoom, Scroll, and Pan

Zoom

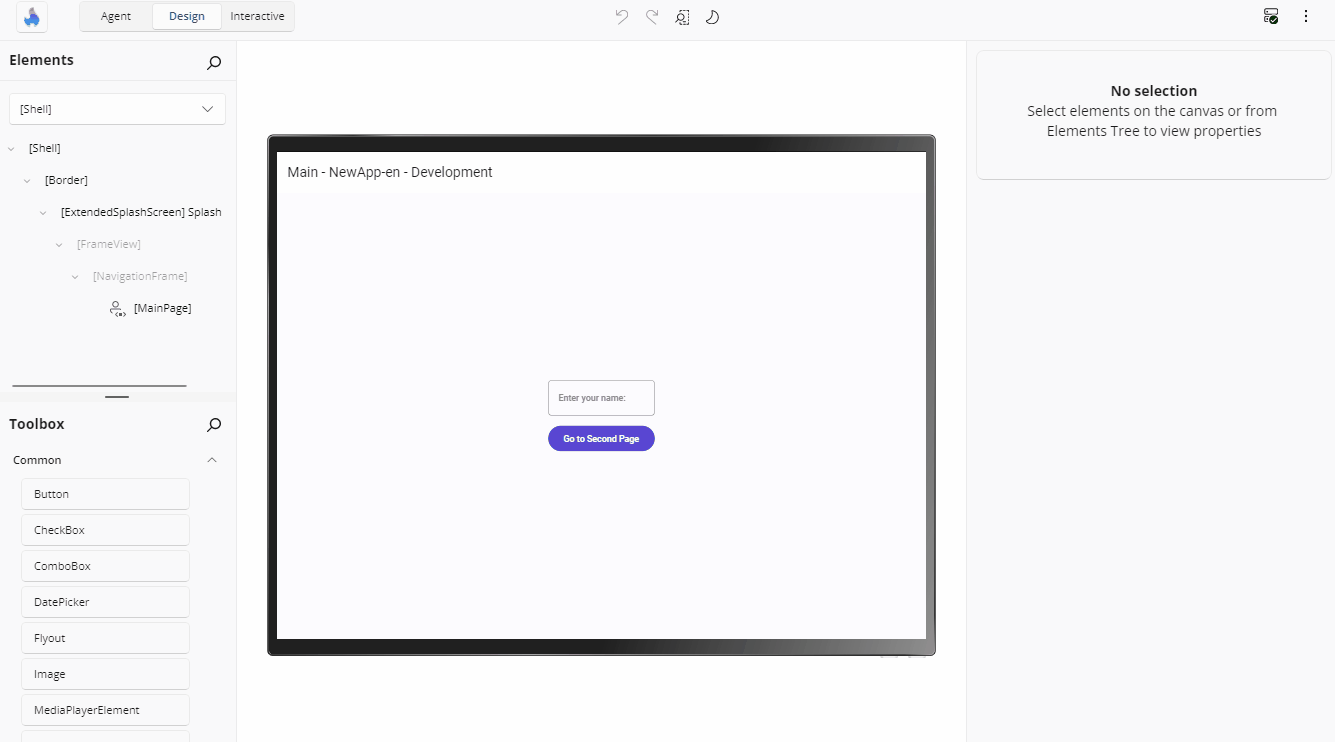

To zoom in or out of the Canvas:

• Mouse: Hold Ctrl (or Cmd on macOS) and scroll with your mouse wheel. The point under the cursor stays put as the canvas scales.
• Keyboard: Press Ctrl + / Ctrl - (or Cmd + / Cmd - on macOS) to zoom in or out in steps of 20 percentage points.

Zoom is clamped to a range of 20% to 340%. Setting a zoom level by any means — the slider, the percentage box, a preset, or Ctrl + wheel — turns Auto-Fit off. With Auto-Fit on, the zoom is computed so the whole design surface fits the visible canvas area, and the effective percentage is displayed even when it falls outside the manual range.

Scroll and Pan

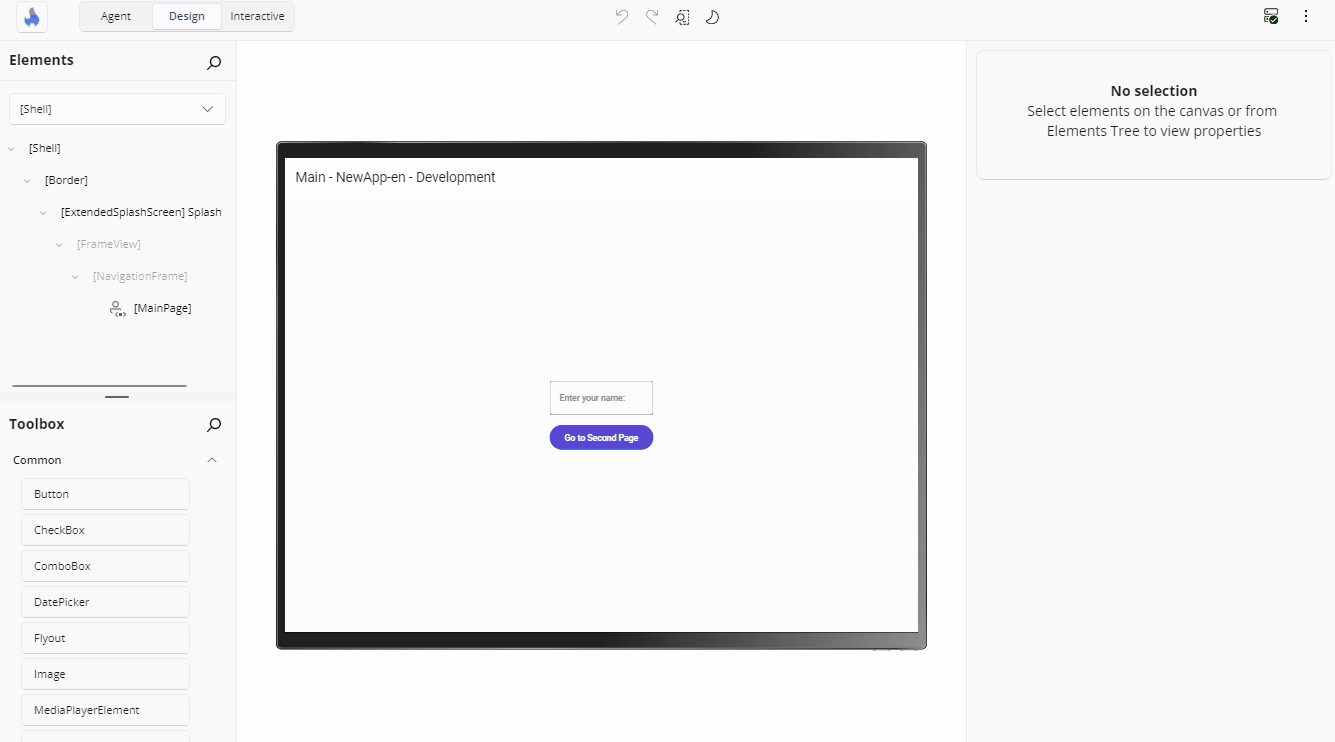

To move around the Canvas area:

• Scroll vertically using your mouse wheel.
• Scroll horizontally by holding Shift while using the mouse wheel.
• Pan in any direction by pressing the middle mouse button and dragging.

Overlay scrollbars appear when the zoomed design surface is larger than the visible canvas area, and are disabled when everything fits.

Resize the Design Surface

A resize gripper sits on each of the four edges of the device frame. Hovering a left or right gripper shows a west-east resize cursor; hovering a top or bottom gripper shows a north-south cursor.

Drag a gripper to resize the design surface continuously — the side grippers change the width only, the top and bottom grippers the height only. Drags map 1:1 to canvas pixels regardless of zoom, so a 10 px pointer move changes the canvas by 5 px at 200% zoom and by 20 px at 50%.

Starting a drag turns Auto-Fit off so the resize is not immediately re-fitted. Completing one switches the form factor to User defined size (Custom) and remembers the resulting dimensions, so switching to a preset and back to Custom restores them — including after restarting your app.

Note

Grippers are hidden while you are viewing a preview — resizing the application surface is not something a preview honours.

Select Elements on the Canvas

To select a control or layout element, click it directly on the Canvas. The top-most selectable element under the pointer is chosen, and highlighted with a blue border known as a visual adorner.

• Clicking an element that is already selected keeps it selected in preference to others under the pointer.
• Hold Alt and click to step to the element immediately beneath the current selection. Repeated Alt + clicks cycle through overlapping elements.
• The middle mouse button never changes the selection — it is reserved for panning.
• Regions with no selectable element — generated template content with no XAML identity, for example — leave the selection unchanged.

Your selection is re-established on the replacement element after a Hot Reload, so you do not have to re-select after a code change.

Select Multiple Elements

Hold Ctrl (or Cmd on macOS) and click additional elements to select them together. This is useful for applying shared properties or moving groups of elements.

Hover Feedback

Moving the pointer over a selectable element draws a thin hover outline around it, so you can see what a click would select before you commit. That is the only outline hover draws — including over an item generated from a DataTemplate, where clicking already opens the item's template.

Hover feedback is suppressed while a drag is in progress, and removed when the pointer leaves the canvas.

Visual Adorner Details

When a single element is selected, a solid outline (the visual adorner) appears around it, showing:

• The control's name (e.g., Button, TextBlock)
• The control's size in pixels (width × height)
• The element's margin and padding, drawn as bands around and inside the outline

Hovering a side of a margin or padding band shows that side's value (for example 16 Padding), so you can read the spacing without opening the Properties panel.

Adjust Spacing and Size by Dragging

Note

Editing layout by dragging on the canvas is a preview feature and is off by default. Enable it for your application by adding [assembly: PreviewFeature(PreviewFeature.CanvasDragEditing)] (from Uno.UI.HotDesign.Client.Logic.AppFeatures), the same way other preview features are opted into. While it is off, a selected element still shows its outline and its margin/padding bands, but nothing on the canvas can be dragged to edit those values.

You can change these values on the canvas instead of typing them into the Properties panel. Select an element and drag:

• a margin or padding area to change that side's value
• the spacing guide between a container's children to change its Spacing, RowSpacing or ColumnSpacing
• the element's edge to change its Width or Height
• a corner to change the Width and Height together — hold Shift while dragging a corner to keep the element's proportions
• the border gripper, at the middle of that edge, to change its BorderThickness

When the pointer moves over one of these areas a small marker appears at its middle, showing where to grab it; it stays hidden otherwise so a selected element is not covered in markers. An area is a fixed size on screen, so it stays the same target at any zoom level and at any value — including zero, so you can introduce a margin, padding or spacing that is not there yet. A margin area sits outside the element and a padding area inside it, so the two are never confused, and the rest of each band stays available for selecting whatever lies underneath. A corner shows a diagonal resize cursor and is offered only when the element is large enough to resize on both axes.

The element responds as you drag, so you can see the layout settle; your XAML is written once when you release, giving one change to undo — a corner drag writes its width and height together, so undoing it returns both. Values step in fours — 0, 1, 2, 4, 8, 12 and so on — because layout values usually want to be multiples of four; hold Shift to move a pixel at a time (on a corner, Shift locks the aspect ratio instead). A badge beside the pointer shows the value and which property you are changing, or Width × Height while resizing from a corner.

Press Esc mid-drag to abandon it: the element returns to the value it started at and nothing is written. If a change cannot be written, the element is put back and you are told, so the canvas never shows a value your source does not have.

Note

Resizing an element whose size its container was deciding sets the size explicitly, so the element stops sizing itself to that container. Hot Design tells you when this happens, because nothing else on the canvas would show it.

When two or more elements are selected, each is drawn with an outline only — no label and no margin/padding bands.

Adorners follow the element they decorate: they track its rendered bounds as it moves, resizes, or the canvas zoom changes.

Layout Guides for Containers

Some containers get affordances specific to them:

• Grid — dashed separator lines between rows and columns when spacing is zero, spacing indicators where row or column spacing is greater than zero, and a highlight over the usable content area inside the Grid's padding.
• StackPanel — dashed separators between children when spacing is zero, and spacing indicators between them when it is not. A guide appears between each pair of visible children: a collapsed child takes up no space in the panel, so no gap is shown for it.
• SwipeControl — Swipe Left / Swipe Right buttons, so you can preview the swipe states without a touch gesture.

Any control with no specific adorner still gets the default outline.

Rearranging Elements with Drag and Drop

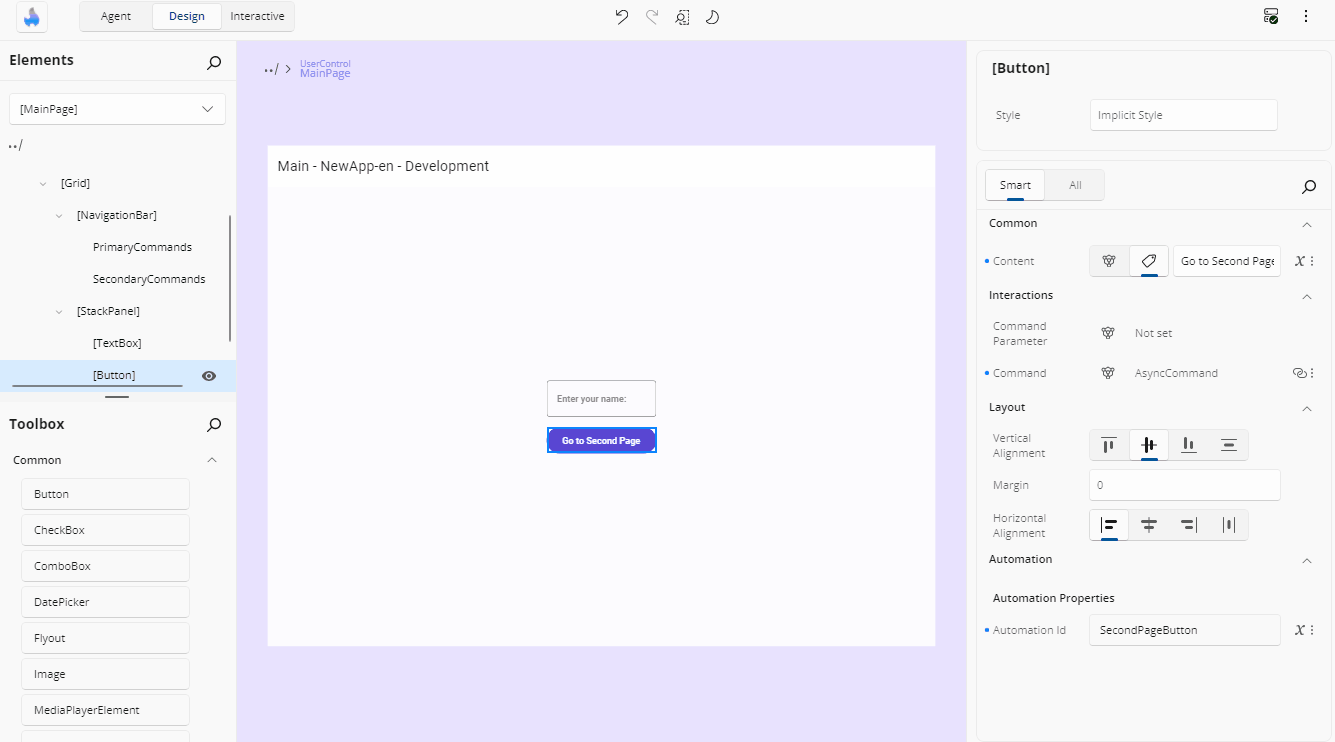

You can reposition controls directly in the layout:

1. Click and hold an element.
2. Drag it to a new location on the Canvas.
3. Release to drop it.

While dragging, a preview outline shows where the element will land and the prospective drop container is outlined with its margin and padding shown. Dropping in a new container or position moves the element in the underlying XAML and confirms the change; dropping it back where it started makes no edit at all. When the pointer is over a region with no valid drop container, the cursor indicates that dropping is not possible there.

A few details:

• Small, involuntary pointer movements do not start a drag — releasing performs a normal selection click instead.
• Holding Ctrl while dragging copies the element: a new copy of its XAML is inserted at the drop position and the original stays in place.
• An element that is not editable in XAML — one with no XAML source position, or presented content — cannot be dragged.

Wrap an Element with a Parent Container

To surround an existing element with a new layout container:

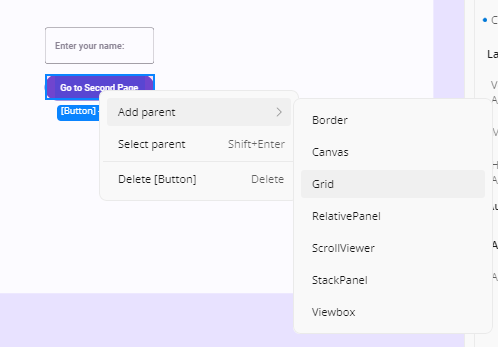

1. Right-click the element.
2. Choose Add parent.
3. Select a parent control: Border, Canvas, Grid, RelativePanel, ScrollViewer, StackPanel, or Viewbox.

The new parent will be added to the visual tree and reflected on the Canvas.

Select an Element's Parent

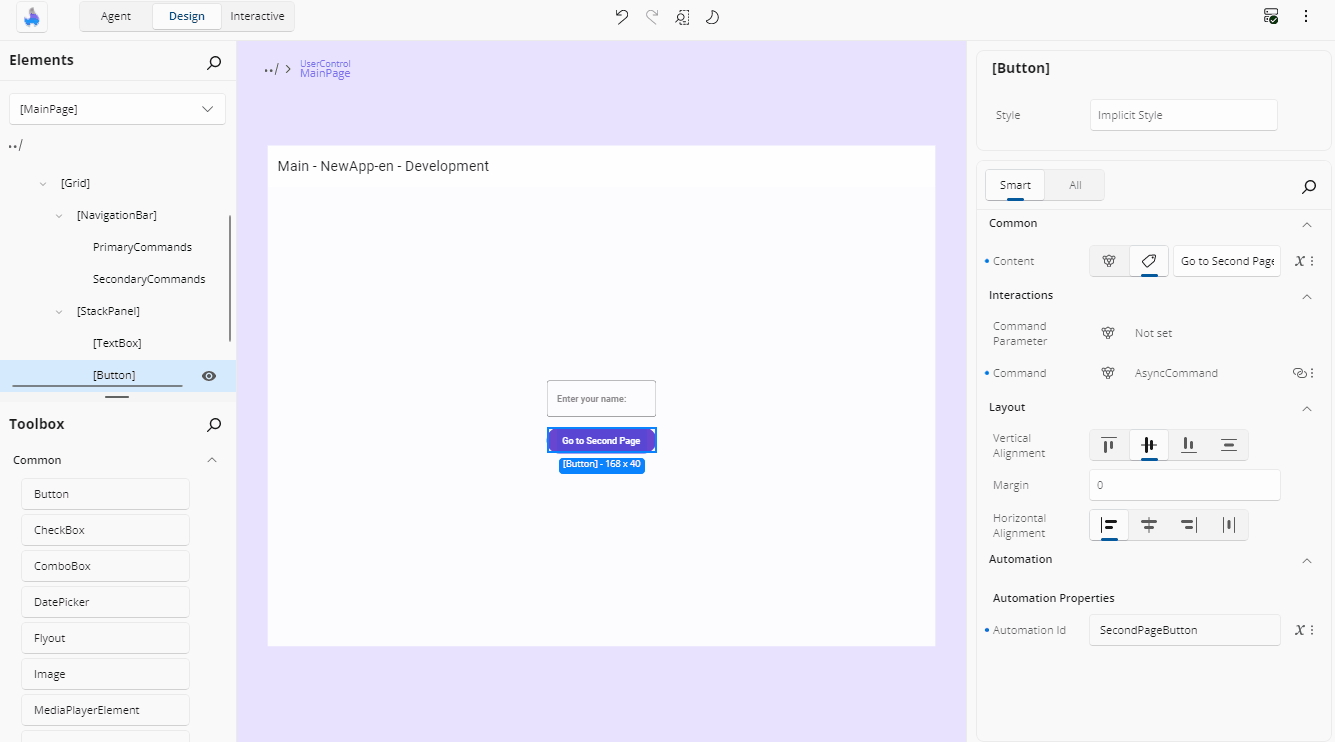

If you're trying to select a layout container of a specific control:

1. Right-click the child element.
2. Choose Select parent from the context menu — or press Shift + Enter.

This selects the parent element on both the Canvas and in the Elements panel.

Delete an Element

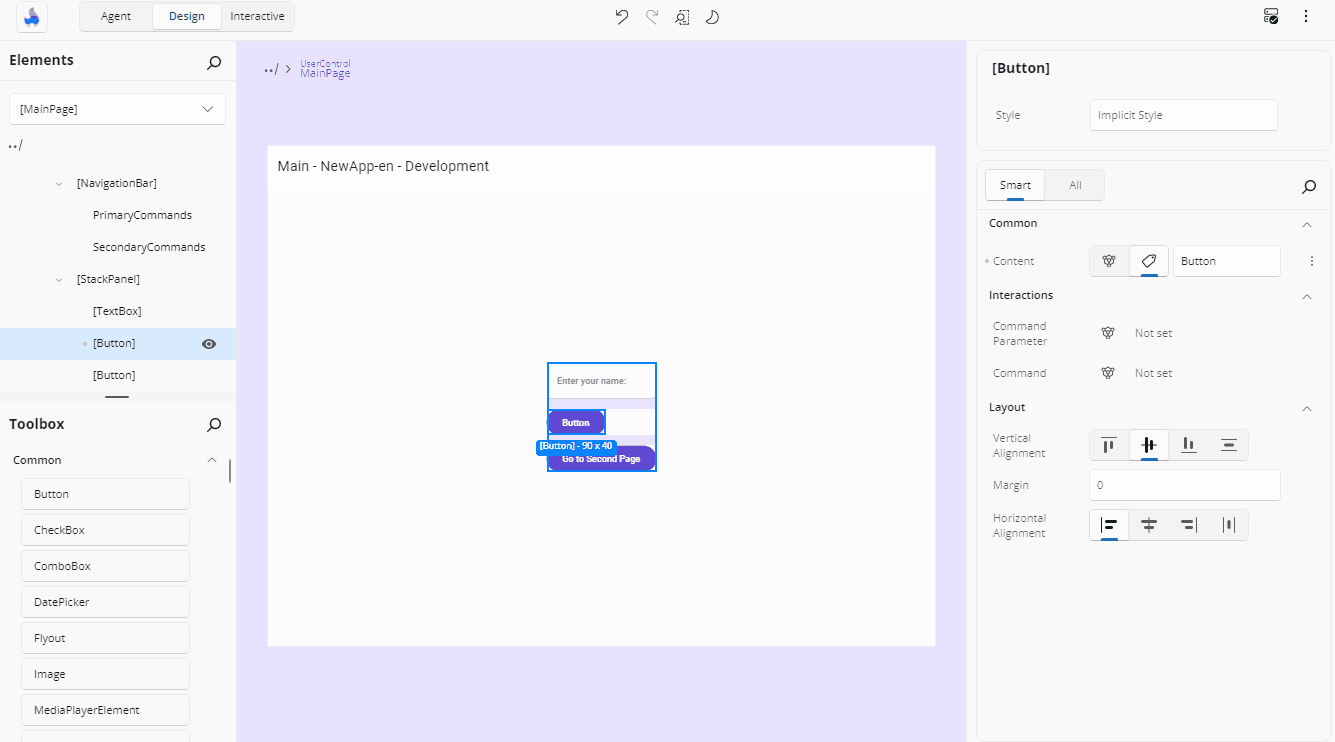

To remove a control from the Canvas:

1. Right-click the element.
2. Choose Delete [ControlName] from the menu (e.g., Delete Button).

Or select one or more elements and press Delete.

The element will be removed from both the Canvas and the Elements panel.

The Context Menu

Right-clicking a selectable element opens a context menu for the element under the pointer — an already-selected element under the pointer takes precedence. The menu offers the actions that apply to that element: Delete (when the element is editable in XAML), Add parent, Select parent, Edit <UserControl>, and Edit [<template property>] for an element inside a data template.

Holding Ctrl + Shift while right-clicking adds advanced entries to the standard ones.

Right-clicking never starts an accidental drag — the pointer and drag state are reset when the menu opens.

Double-Click Actions

Double-clicking on the canvas navigates the editing context:

Double-click on	Result
An item generated from a DataTemplate	Opens that template in the Template Editor
A UserControl belonging to your project	Opens it in its own editing scope
An area outside the current editor's content	Closes the current editor and returns to the parent scope

Edit a UserControl from the Canvas

A UserControl is a reusable component that encapsulates a set of UI elements and their associated behavior. It's commonly used to organize parts of your interface into self-contained, maintainable units that can be reused across different parts of your application.

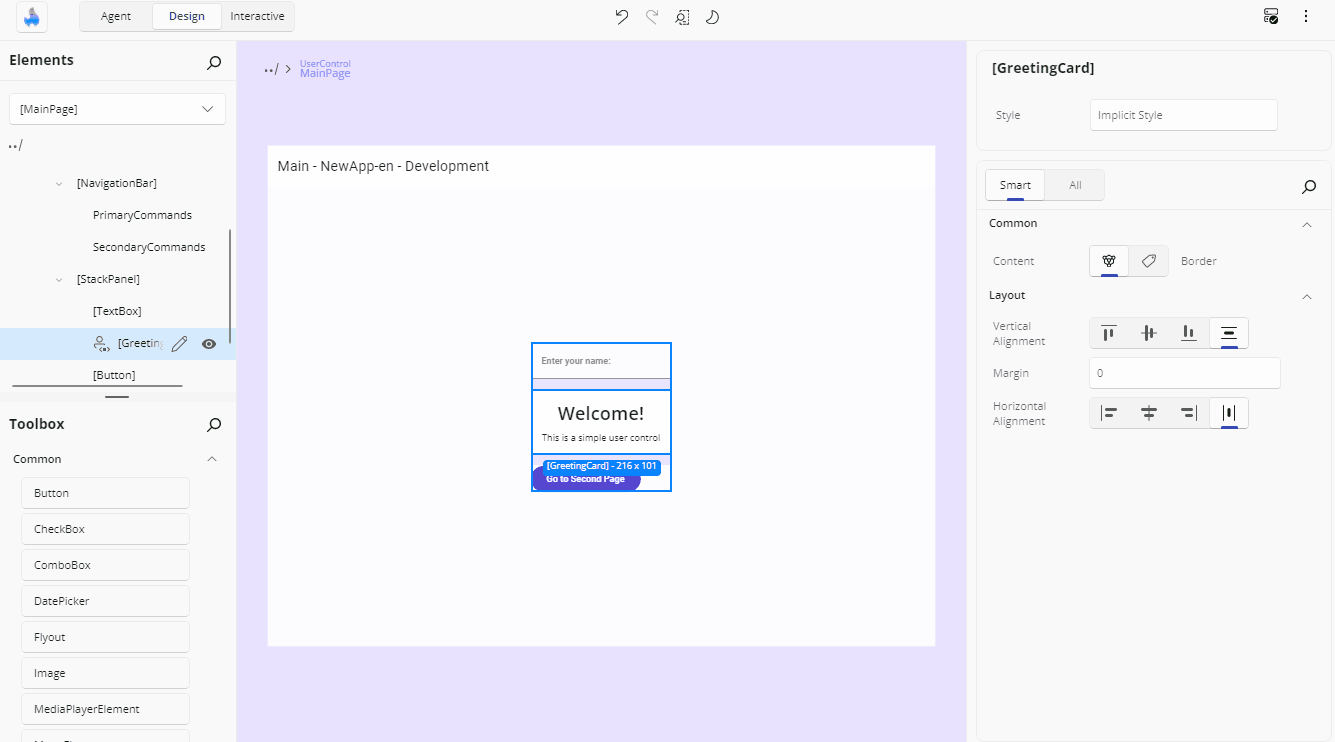

If your layout includes a UserControl, you can open it directly from the Canvas for editing:

1. Right-click the UserControl.
2. Choose Edit [UserControlName] — or double-click it, or press Ctrl + Shift + U with it selected.

This opens the editor for the UserControl, allowing you to modify its internal structure or layout. To return to your previous page edition, click the ../ back icon in the top-left corner of the interface or the Elements panel.

When you close a UserControl editor, every live instance of that UserControl is refreshed — not just the one you were editing — so your change is visible everywhere it is used. Closing an editor in which you changed nothing runs no refresh at all.

Edit Flyouts from the Canvas

You can edit flyouts in Hot Design in two main ways.

Using the Property Window

You can locate the Flyout property in the Property Window and edit it using the Complex Type Editor. To learn more about how the Complex Type Editor works, refer to the Complex Type Editor documentation.

Using the Flyout Editor

The Flyout Editor allows you to edit the contents of the flyout directly. You can add, remove, or modify individual elements inside the flyout. To open the Flyout Editor, follow these steps:

1. In the Toolbar, click the More Options button (three dots).
2. Hover over the Window menu and uncheck the option Show tools in-app. This will move the Toolbox, Elements window, and Property window to external windows, leaving only the Canvas in the main window.
3. Enable Interactive Mode by clicking the Play button in the toolbar.
4. Perform the action that opens the flyout (e.g., click the button that has a flyout).
5. With the flyout still opened, disable Interactive Mode by clicking the Pause button in the Toolbar. This will activate the Flyout Editor.

Now you can freely make any changes to the flyout.

To exit the Flyout Editor, you can:

• Click the Enter Interactive Mode button in the Toolbar (Play icon)
• Or click the Back icon in the top-left corner of the Canvas or Tree window

Note

In external tool windows, zoom features are disabled. This means you won't be able to adjust form factor, zoom, or scroll while editing a Flyout.

Tip

UserControl and DataTemplate editors are fully supported inside the Flyout Editor, so you can edit them directly within the Flyout context.

Important

Editing nested flyouts is not supported at the moment.

The Device Frame and Canvas Appearance

The design surface is wrapped in a device frame whose chrome matches the selected form factor: the phone-class form factors (Narrowest and Narrow) show a small-device bezel, and every other form factor shows the larger-device frame. The frame is not shown while a nested template editor is open.

The area around the frame is filled with the designer canvas color — #ECEDEE in light theme and #2E3438 in dark. There is no checkered background pattern.

Application content that paints outside its layout bounds — a full-screen background or a particle effect, say — is clipped at the design surface boundary, so it never renders over the device frame chrome. The clip follows the application area as the frame is resized or the form factor changes.

A fixed inset is kept between the design surface and the edge of the canvas viewport, with extra space at the bottom while a preview is open so content never renders under the Edit overlay button.

Rulers and Guides

Note

The rulers and the crosshair are preview features and are off by default. Enable them for your application by adding [assembly: PreviewFeature(PreviewFeature.CanvasRulers)] and [assembly: PreviewFeature(PreviewFeature.CanvasCrosshair)] (from Uno.UI.HotDesign.Client.Logic.AppFeatures), the same way other preview features are opted into. The crosshair needs the rulers: on its own it is not offered. While a feature is off, its entry is absent from the Windows menu and its shortcut does nothing.

The canvas is framed by rulers — one along the top, one down the left. Press Ctrl + R to turn them off, or back on; the same toggle sits in More (⋯) > Windows > Rulers & Guides. Your choice is remembered, so if you turn them off they stay off next time you open Hot Design.

Position 0 on each ruler lines up with the top-left corner of the screen you are designing, so a value on a ruler is the coordinate your XAML would use. Values to the left of, or above, that corner read as negative. The rulers follow the canvas as you zoom and pan, and the spacing between labelled marks adapts so the numbers never run together.

Where the pointer is. The crosshair is off to begin with. Press Ctrl + Shift + R — or use More (⋯) > Windows > Crosshair — for a crosshair that follows the pointer across the canvas. With the rulers on, each ruler shows the coordinate under the pointer beside the crosshair line.

The crosshair and the rulers are separate toggles, and each is remembered on its own. Turn the crosshair on by itself to line two elements up by eye without giving up canvas space to the rulers, or turn the rulers on by themselves if you would rather nothing followed the pointer.

Where the selection is. Selecting an element bands its extent on both rulers and calls out the start and end values, so you can read an element's position and size straight off the ruler. A labelled mark that would collide with one of those values is hidden while it does.

Guides are reference lines you place yourself:

• Add one by pressing on a ruler and dragging onto the canvas. A plain click on a ruler leaves nothing behind.
• Move one by dragging it. A guide runs the full width or height of the canvas, across its ruler, and can be grabbed anywhere along it; the ruler shows its position as you drag.
• Delete one by dragging it back onto the ruler it came from, or by selecting it and pressing Delete. With a guide selected, Delete removes the guide rather than the selected element.
• Clear them all from the ruler's own context menu — right-click either ruler for Hide Rulers & Guides and Clear All Guides.

How far apart things are. With two or more guides on the same axis, the distance between each adjacent pair is shown on the canvas beside that axis' ruler, on an arrow spanning the gap it measures, in the same units the rulers use. Drag a guide and the distances follow it. A gap too narrow for the number to fit is left unlabelled — zoom in and it appears.

Each guide's own position is shown on its ruler at all times, so you can read where every guide is without touching any of them. A guide turns the highlight colour while you drag it and returns to the guide colour when you let go.

Measuring from a point. With the crosshair on, hold Shift to leave a second crosshair where the pointer is; as you move, the horizontal and vertical distances from that point are shown on arrows spanning them. Release Shift to finish. The anchor stays on the canvas position you placed it on, so you can pan or zoom mid-measurement. Measuring is a hover gesture: while you are dragging something — resizing an element, panning, moving a guide — Shift keeps its usual meaning for that drag and no measurement is placed.

Guides last for the session rather than being saved with your project, and they are discarded when you open a different screen, since a position only means something against the screen it was placed on. The ruler and crosshair toggles are remembered; the guides are not.

Note

The rulers are not drawn while Interactive mode is on — the canvas belongs to your running application then, and a strip along its edges would swallow taps meant for your app.

Interactive Mode

Hot Design's Selection / Interactive toggle decides whether canvas clicks select elements or drive your running app.

Turning Interactive on (from the toolbar, or with Ctrl + Shift + I) passes pointer input straight through to your application: buttons work, navigation works, animations run. Selection chrome is hidden, the current selection is cleared, and any open nested editors are closed first. Turning it off rebuilds the element hierarchy so the design surface reflects wherever you navigated to, and selection resumes.

Note

While the toggle is on, the Toolbox, Elements, and Properties panels are covered by a dimming overlay — the canvas and the top toolbar stay interactive. Tapping a covered panel returns you to selection mode.

The toggle is not available on the previews canvas, which has its own interaction handling.

If your page still carries design-time data, turning Interactive on asks you to confirm first.

Keyboard Shortcuts

The canvas responds to the shortcuts listed in full on the Shortcuts page. The ones you will reach for most:

Action	Shortcut
Delete the selection	Delete
Select the parent element	Shift + Enter
Edit the selected UserControl	Ctrl + Shift + U
Undo / redo	Ctrl + Z / Ctrl + Y
Fit content to the canvas	Ctrl + 0
Zoom to 100% / 200% / 300%	Ctrl + 1 / 2 / 3
Toggle Auto-Fit	Ctrl + 9
Toggle Interactive mode	Ctrl + Shift + I
Show or hide the rulers and guides	Ctrl + R
Show or hide the crosshair	Ctrl + Shift + R
Measure from a point (crosshair on)	Hold Shift

Helpful Notifications

While designing on the Canvas, notifications may appear:

• When changes are applied, a loading indicator may display briefly. Changes that need the running app to be rebuilt show an Updating App overlay while a Hot Reload runs.
• If an error occurs (e.g., invalid XAML), an error notification appears in the bottom-right corner.

These notifications help you track changes and issues in real time.

Next Step

• Properties
