How to use Tabs component

Overview

Tabs help the organization of content and data sets. Tabs components can host from 1 to 5 TabBarItems. Tabs can either have a fixed width in which to display all its items or it can scroll its TabBarItems horizontally.

Tabs can be found in the Assets panel in the Navigation group of components.

Steps

  1. Drag Tabs component into the Page layer of the design (as tabs aren’t part of the scrollable content of a page);
  2. Select the amount of TabBarItems as well as their behaviour (Fixed or Scrollable) from the variants panel;
  3. Text and Icon options can be managed by selecting the ◇ TabBarItem layers to reveal their distinctive variants in the Figma Variants panel.

Styling Tabs

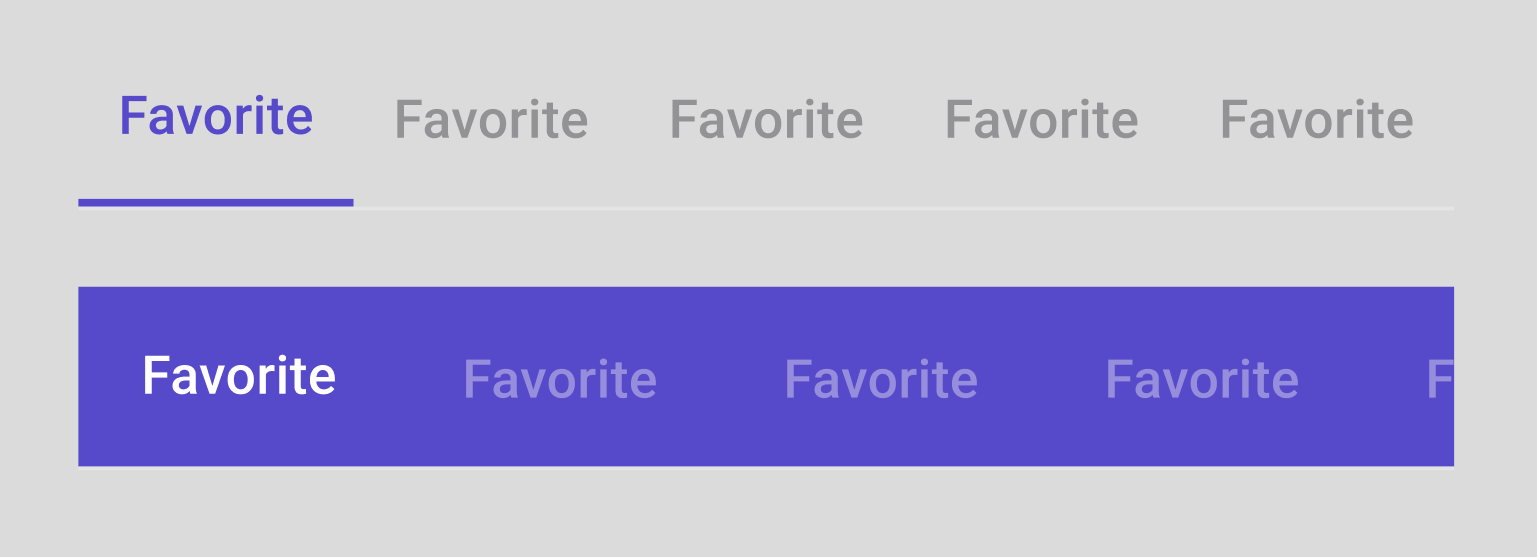

Tabs can be styled as either Top Tabs or Bottom Tabs

When applying color to tabs there are 2 patterns that can be used:

  1. Transparent surface with PrimaryColor for the selected TabBarItem content and OnSurface @ 38% opacity for unselected TabBarItem content;
  2. Filled surface with PrimaryColor, with OnPrimaryColor for the selected TabBarItem content and OnPrimaryColor @ 38% opacity for unselected TabBarItem content.

Tab Variants

Item count: 1, 2, 3, 4, 5

Scrollable or Fixed

TabBarItem

Text: True or False

Icon: Top, Only, Side, None
